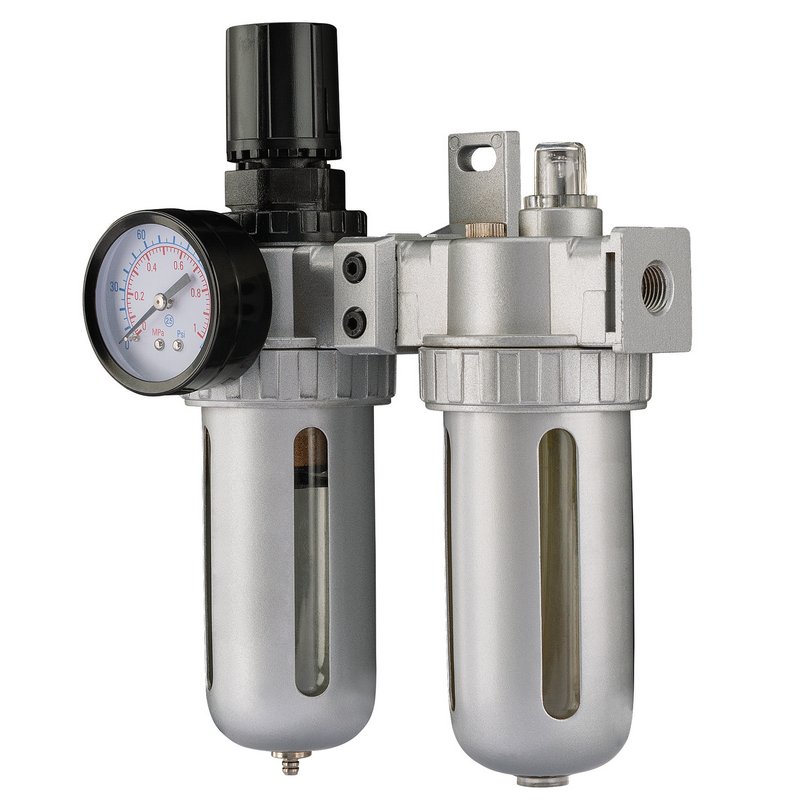

Draper 1/4" BSP Combined Filter/Regulator/Lubricator Unit DRA-70824

Designed to control output air pressure, eliminate moisture and contaminants from airflow and to lubricate tools during use. The main body of this unit is aluminium with polished silver finish. The gauge has steel casing and is duel-marked with psi and Mpa. Steel screw-on transparent bowl. Manual/semi-automatic drain, fitted with 40-micron filter. Complete with wall bracket. Inlet/outlet thread: 1/4" BSP, Max. inlet pressure: 145psi, Working temperature range: 5-60℃, Filtration element: 40um, Dimensions: 214 x 170 x 97mm, Weight: 0.98kg

Barcode: 5010559708246
