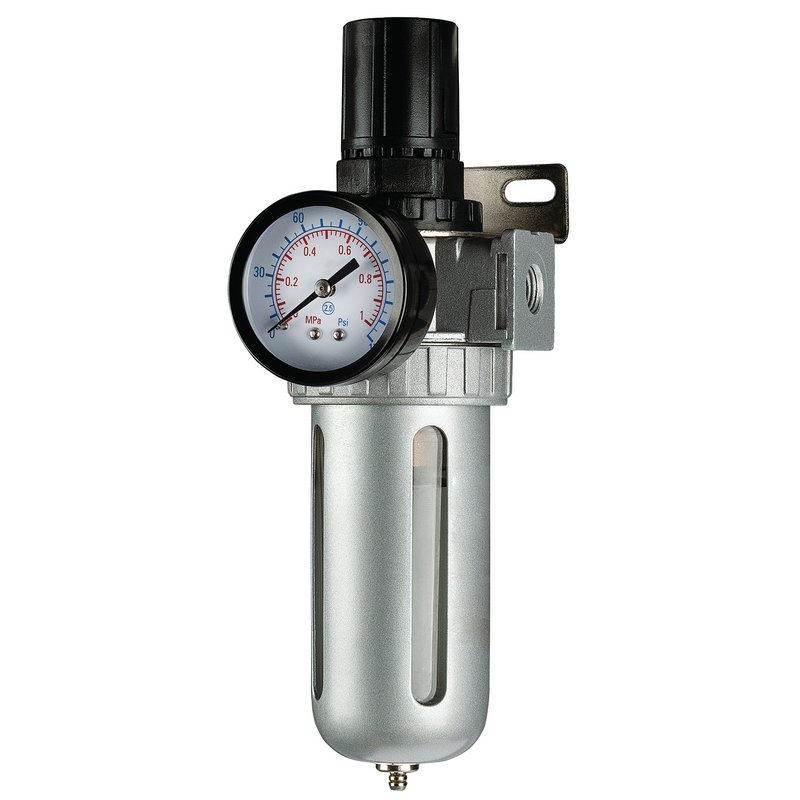

Draper 1/4" BSP Filter/Regulator Unit DRA-70826

Designed to eliminate moisture and particulates from the airflow. The main body of this unit is aluminium with polished silver finish. The gauge has steel casing and is duel-marked with psi and Mpa. Steel screw-on transparent bowl. Manual/semi-automatic drain, fitted with 40-micron filter. Complete with wall bracket. Inlet/outlet thread: 1/4" BSP, Max. inlet pressure: 145psi, Working temperature range: 5-60℃, Filtration element: 40um, Dimensions: 214 x 80 x 103mm, Weight: 0.57kg

Barcode: 5010559708260
