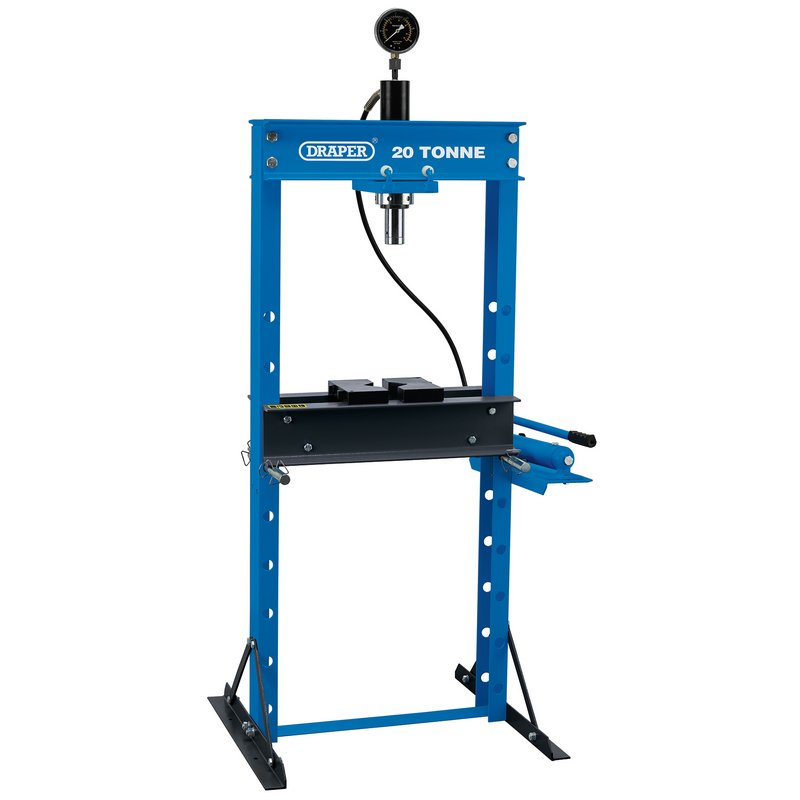

Draper 20 Tonne Floor Press DRA-70540

Robust hydraulic 20 tonne floor press with sliding ram. There are nine adjustable table heights: 256, 366, 486, 606, 726, 846, 966, 1086 and 1106mm. The glycerine liquid filled gauge provides increased accuracy and prolonged service life. An anti-kink coil is fitted to each end of the flexible hose for increased protection. Fitted with a safety valve to pretend the press from overloading. Complete with two flat V-shaped blocks. Fully tested and certified for safe, reliable operation. 1 x 20 Tonne Hydraulic Floor Press Capacity: 20 tonnes, Frame Depth: 100mm, Frame Height: 1515mm, Frame width: 740mm, Max Table to Ram Height: 998mm (max.), Min Table to Ram Height: 28mm (max.), Overall height: 1785mm, Ram stroke: 185mm, Ram Type: Sliding, Table Settings: 9, Working table width: 550mm, Weight: 113kg

Barcode: 5010559705405
