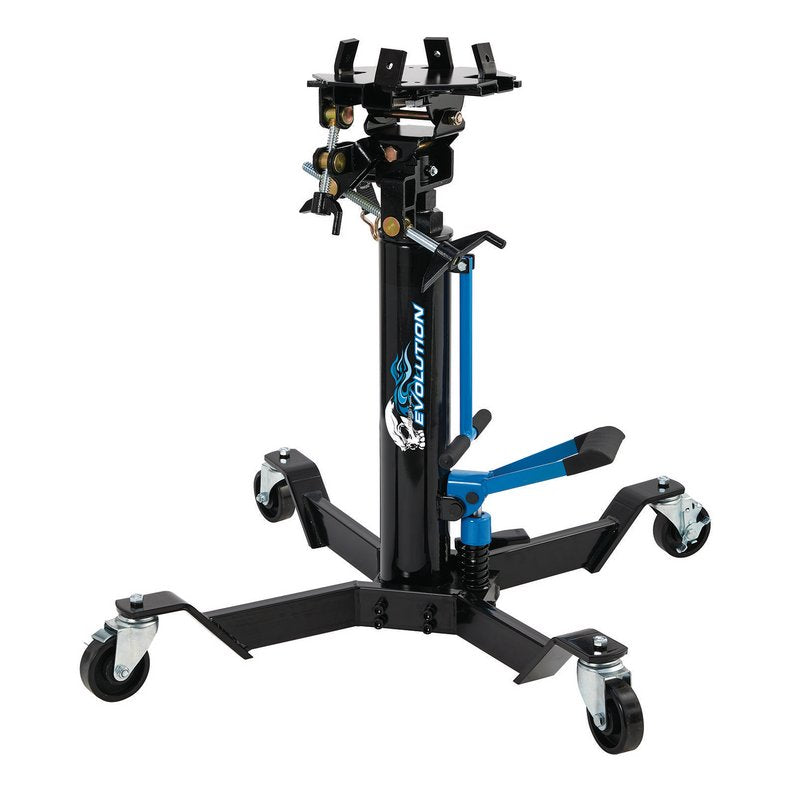

Draper Expert Evolution Vertical Transmission Jack, 500kg

This vertical transmission jack is part of the stylish and distinctive Evolution range.

Telescopic twin stage ram with a low entry height for reduced clearances.

Operated by foot pedal for easy hands-free operation.

Fully adjustable saddle able to accept a wide range of components.

Has forward, backward and side-to-side tilting action to aid the user further.

Ratchet saddle claws enhance the operating speed when clamping the load.

There are two non-marking ratchet straps for added support.

Fitted with four extra-large 100mm nylon castors that prevent damage to floors and provide quiet and smooth operation.

The side mounted T-handle further aids positioning and manoeuvrability.

Fitted with overload safety valve.

Fully tested and certified for safe, reliable operation.

Capacity 500kg.

Capacity: 500kg
Minimum height: 902mm
Maximum height stage 1: 1,387mm
Maximum height stage 2: 1,891mm
Saddle type: Adjustable
Base dimensions: 290 x 290mm
Castor diameter: 100mm
Weight: 66kg

Product ID: DRA-08557

Barcode: 5059482058905
