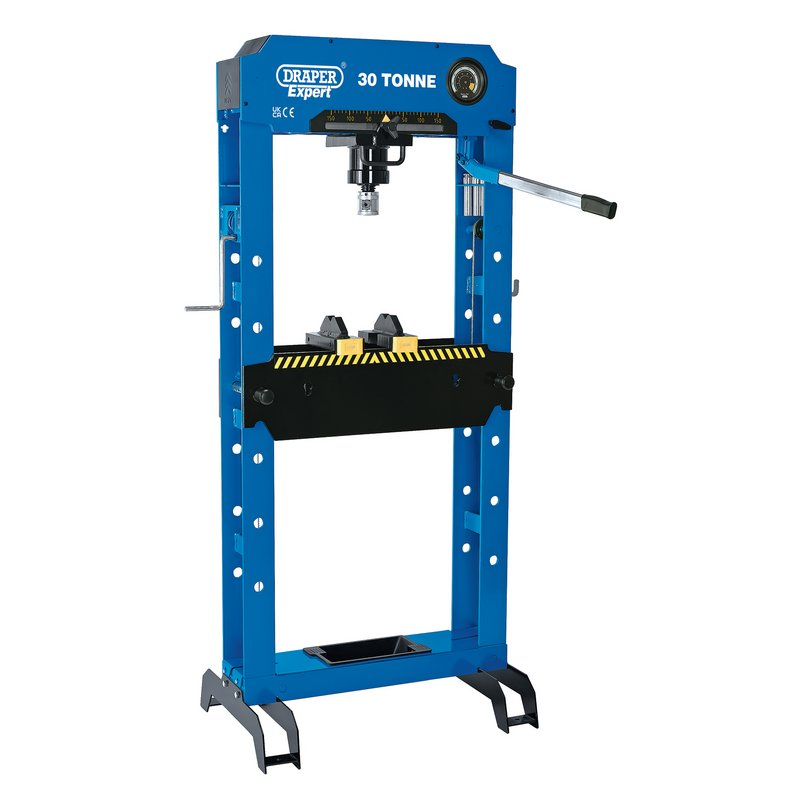

Draper Expert Hydraulic Floor Press, 30 Tonne DRA-70561

Robust hydraulic 30 tonne floor press with sliding ram for precise pressing. Fitted with hand pump for manual hydraulic operation. There are 12 adjustable table heights with a working range between 25-850mm. The table can be lifted or lowered using a winch. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks. 1 x Draper Expert Hydraulic Floor Press, 30 Tonne Capacity: 30 Tonne, Gauge diameter: 100mm, Ram stroke: 220mm, Ram scale: 145mm - 0mm - 145mm, Ram diameter: 50mm, Table height: 25-850mm, Press pin capacity: 2-15 Tonnes, Overall height: 1800mm, Frame dimensions: (H) 1685 x (W) 600 x (D) 148mm , Weight (net): 157kg

Barcode: 5010559705610

Draper Expert Hydraulic Floor Press, 30 Tonne DRA-70561

Draper Expert Hydraulic Floor Press, 30 Tonne DRA-70561

SKU:DRA-70561

Regular price £1,132.89 GBP
Regular price £1,793.75 GBP Sale price £1,132.89 GBP
Sale Sold out
Shipping calculated at checkout.

Low stock: 10 left
