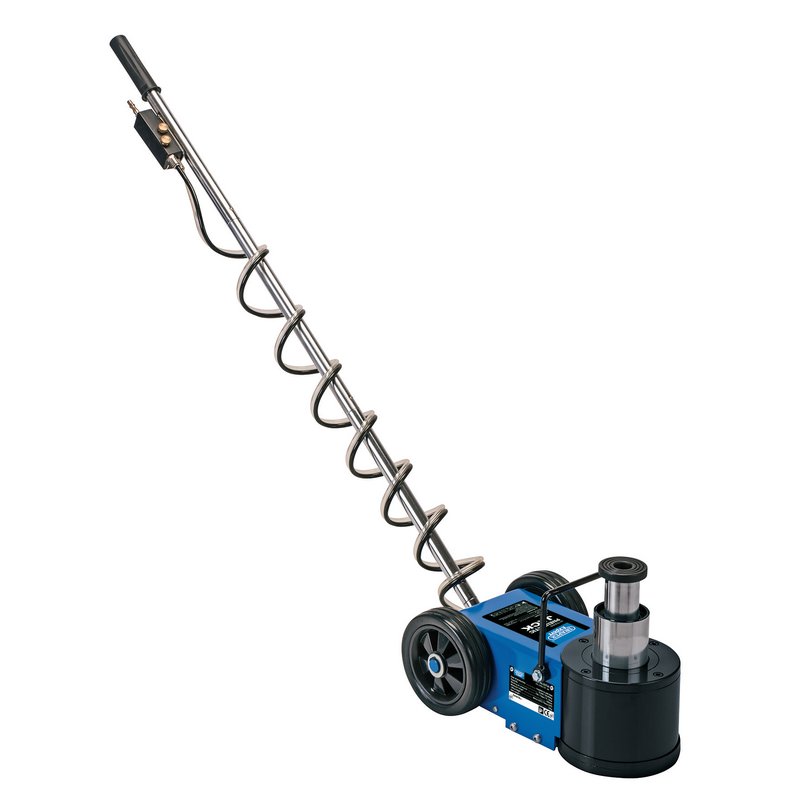

Draper Pneumatic Jack, 30 Tonne DRA-03724

Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard. Capacity stage 1:30 Tonne (30,000kg), Capacity stage 2:15 Tonne (15,000kg), Minimum height:150mm, Maximum height stage 1:343mm (inc extensions), Maximum height stage 2:409mm (inc extensions), Lift height stage 1:73mm, Lift height stage 2:66mm, Operating air pressure:9 – 12BAR (130 – 174psi), Air consumption:10.5cfm, Air inlet:1/4” BSP, Wheel diameter:165mm, Wheel width:42.5mm, Saddle diameter:70mm, Extensions:45mm and 75mm, Handle length:1200mm, Chassis size:430 x 176 x 150mm, Nett weight:30kg Manufactured to EN1494 Specification

5010559037247
