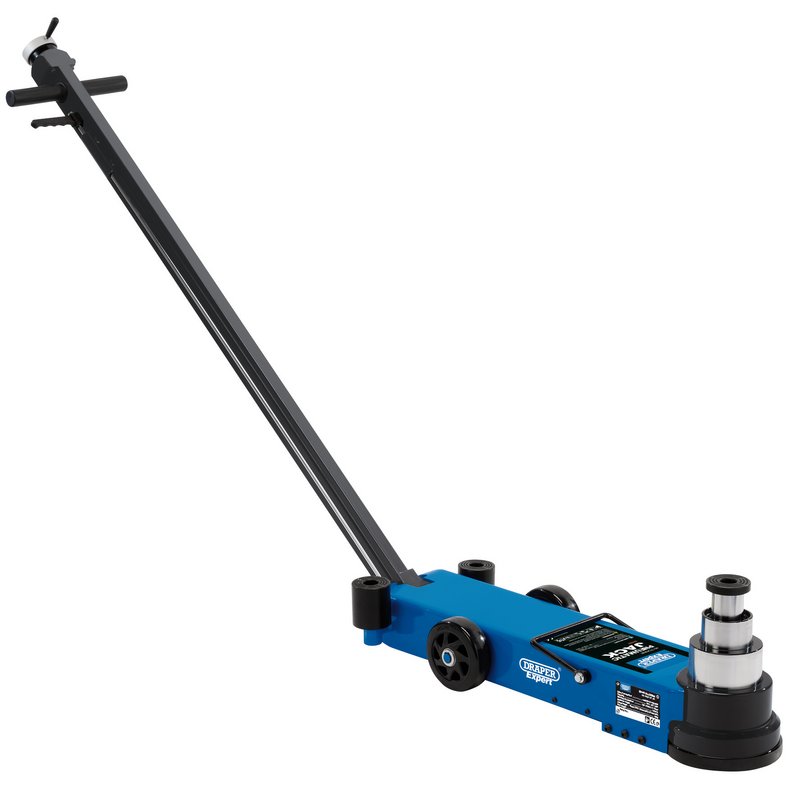

Draper Pneumatic Long Chassis Low Profile Jack, 40 Tonne DRA-02080

Expert Quality, long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Capacity stage 1:40 Tonne (40,000kg), Capacity stage 2:20 Tonne (20,000kg), Capacity stage 3:10 Tonne (10,000kg), Minimum height:125mm, Maximum height stage 1:302mm (inc extensions), Maximum height stage 2:347mm (inc extensions), Maximum height stage 3:396mm (inc extensions), Lift height stage 1:57mm, Lift height stage 2:45mm, Lift height stage 2:49mm, Operating air pressure:9 – 12BAR (130 – 174psi), Air consumption:11.5cfm, Air inlet:1/4" BSP, Wheel diameter:125mm , Wheel width:47.5mm, Saddle diameter:70mm, Extensions:45mm and 75mm, Handle length:1380mm, Chassis size:830 x 179 x 125mm, Nett weight:44kg Manufactured to EN1494 Specification

5010559020805
