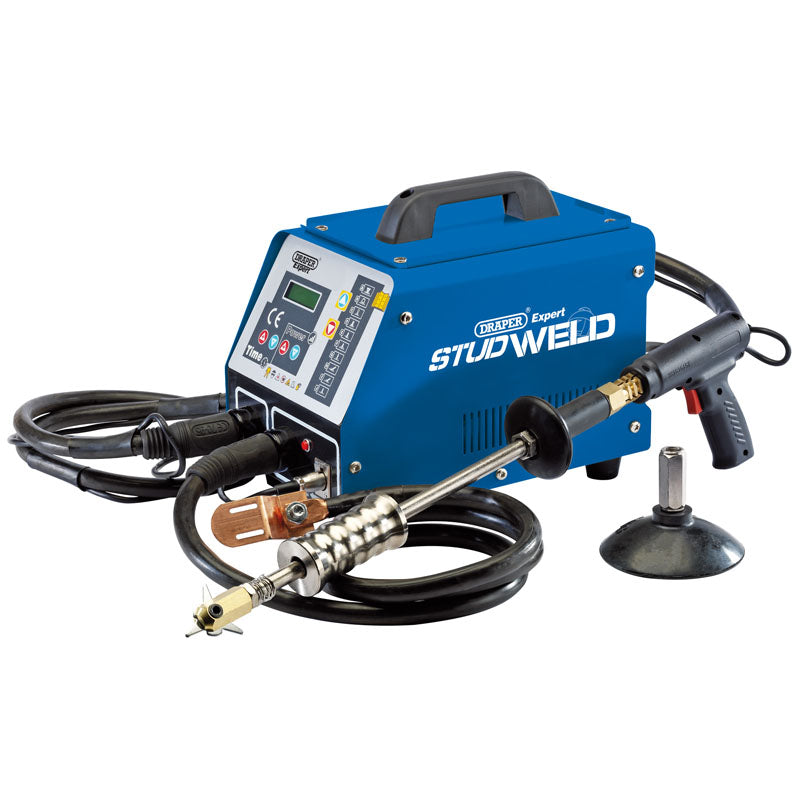

Draper Stud Welder, 3100A DRA-76592

Expert Quality, features include, quick release stud gun with slide hammer attachment, dinse earth clamp, adjustable welding parameters, power time settings and single or continual spot selection. Supplied with carbon rods x 3, carbon rod chuck x 1, washer connector x 1, triangle washer connector x 1, triangle washers x 10, 12mm washers x 15, 10mm washers x 15, earth clamp, manual cupule and pulling hook all housed in a tough plastic storage case. Stock No. 71106 comes complete with a metal trolley enabling easy manoeuvrability around the workshop. Trolley available separately Stock No. 76593 and Welder available separately Stock No. 76592. Input voltage:230V AC @ 50HZ, Input current:32A, Rated max. supply current:12.3KVA, Output amperage range:3100A, Output voltage:1-13V, Welding time:0-99 seconds, For use on material thickness:0.8MM - 1.2MM , Torch cable length:3M, Earth lead:2M, Dimensions:350 x 220 x 280mm, Weight:28kg

Barcode: 5010559765928
