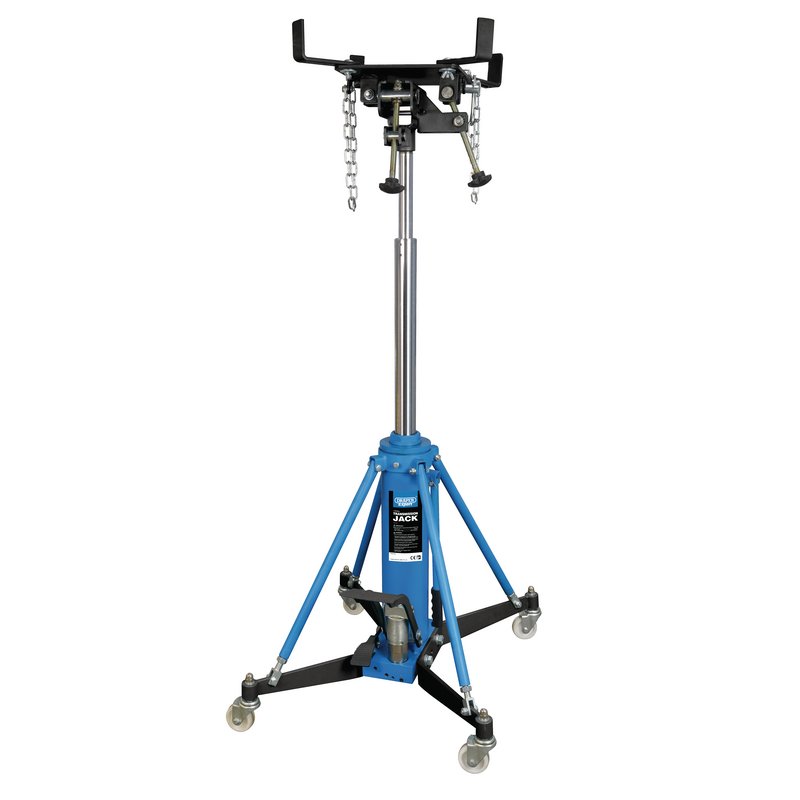

Draper Vertical Transmission Jack, 1000kg DRA-19788

Expert Quality, hydraulic vertical transmission jack with a telescopic twin stage ram. Fitted with a lowering control system (LCS) which safely lowers the load precisely into positionand the safety overload valveprovides addeduser protection. Operated via the twin position andlsquo;Quick Lift' foot pedal for hands - free operation and attached with chain straps for added support and adjustable supporting struts for increased stability. The nylon wheels provide a quieter and smoother operation whilst preventing damage to workshop floors and the side - mounted handle aids positioning and increases manoeuvrability. The fully adjustable saddle can accept a wide variety of gearboxes/components and the forward, backward and side - to - side tilt features aids the user further. Capacity: 1,000kg, Minimum height: 940mm, Maximum height stage 1: 1,430mm, Maximum height stage 2: 1,940mm, Castor diameter: 75mm, Base size: 740 x 640mm, Saddle type: Adjustable, Chain length: 1,495mm, Weight: 67kg Manufactured to EN1494 Specification

Barcode: 5010559197880
