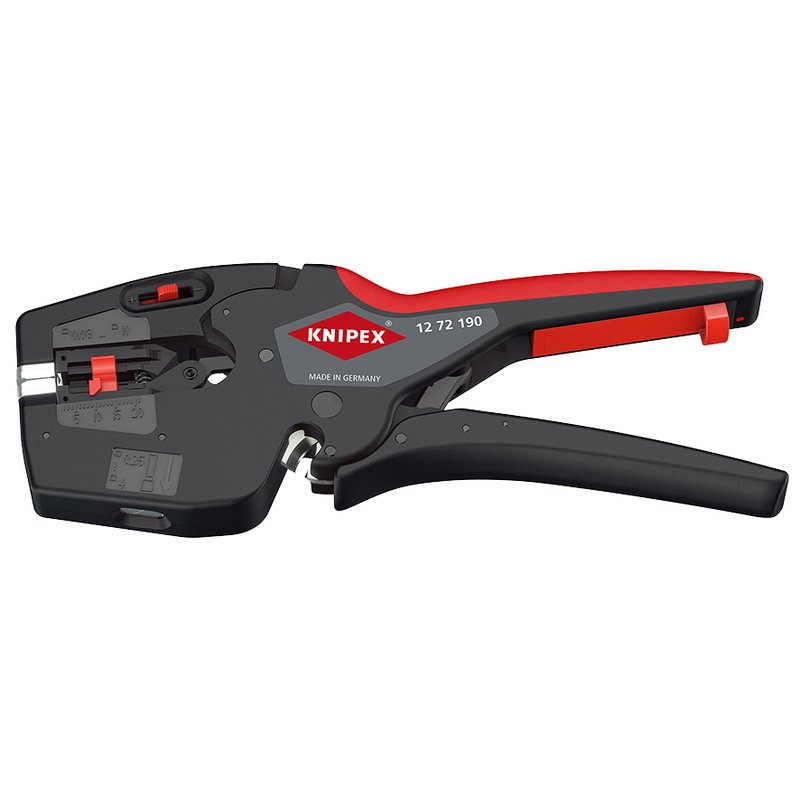

KNIPEX 12 72 190 SB NexStrip Multi-Tool for Electricians,190mm
Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure.
Precise stripping: automatically adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work.
Multi-component grips ensure non-slip, comfortable handling.
Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes.
Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle.
Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8).
Cleanly cuts conductors up to 10 mm² (AWG 8).
High-quality housing made of glass fibre reinforced plastic.
For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller).
Wire stripper with three functions: stripping wire up to 10 mm², crimping capacity of 4 mm² or 2 x 2.5 mm² and cutting capacity of 10 mm².
Product ID: DRA-27039
Barcode: 5059482073175
