• Aluminium cylinder head with cast iron lining gives reduced weight and improved resistance to wear.
• Suitable for general purpose workshop applications.
• Oil free, single piston pump is belt driven by a 2hp motor and fixed to a vertical type tank, saving space around the workshop.
• Precision welded receiver tank manufactured to meet Pressure Vessel Directive.
• Fitted with fully automatic pressure cut-out switch and air regulator with gauge.

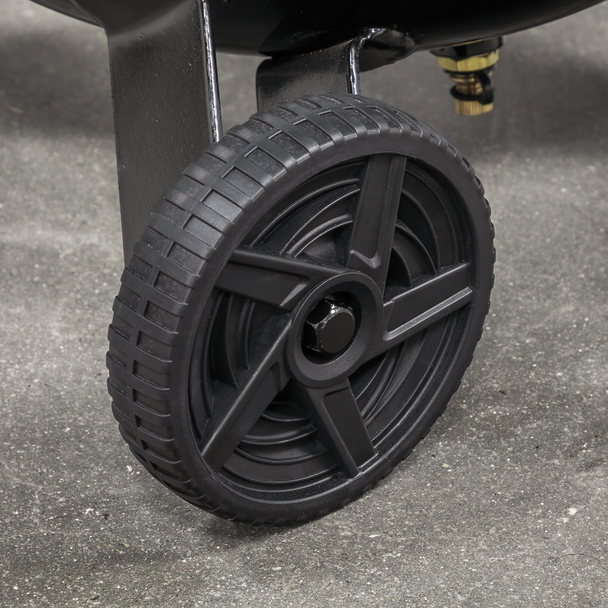

• Supplied with handle and wheels for easy manoeuvrability.
Air Displacement cfm(L/min): 7.3(205)
Maximum Free Air Delivery cfm(L/min): 5.1(145)
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 13A
Motor Output: 2hp
Nett Weight: 23kg
Outlet: Quick Release Coupling
Phase: 1ph
Receiver Capacity: 50L
Size (W x D x H): 380 x 400 x 875mm
Speed: n/a
Supply: 230V
Model No. SAC05020
